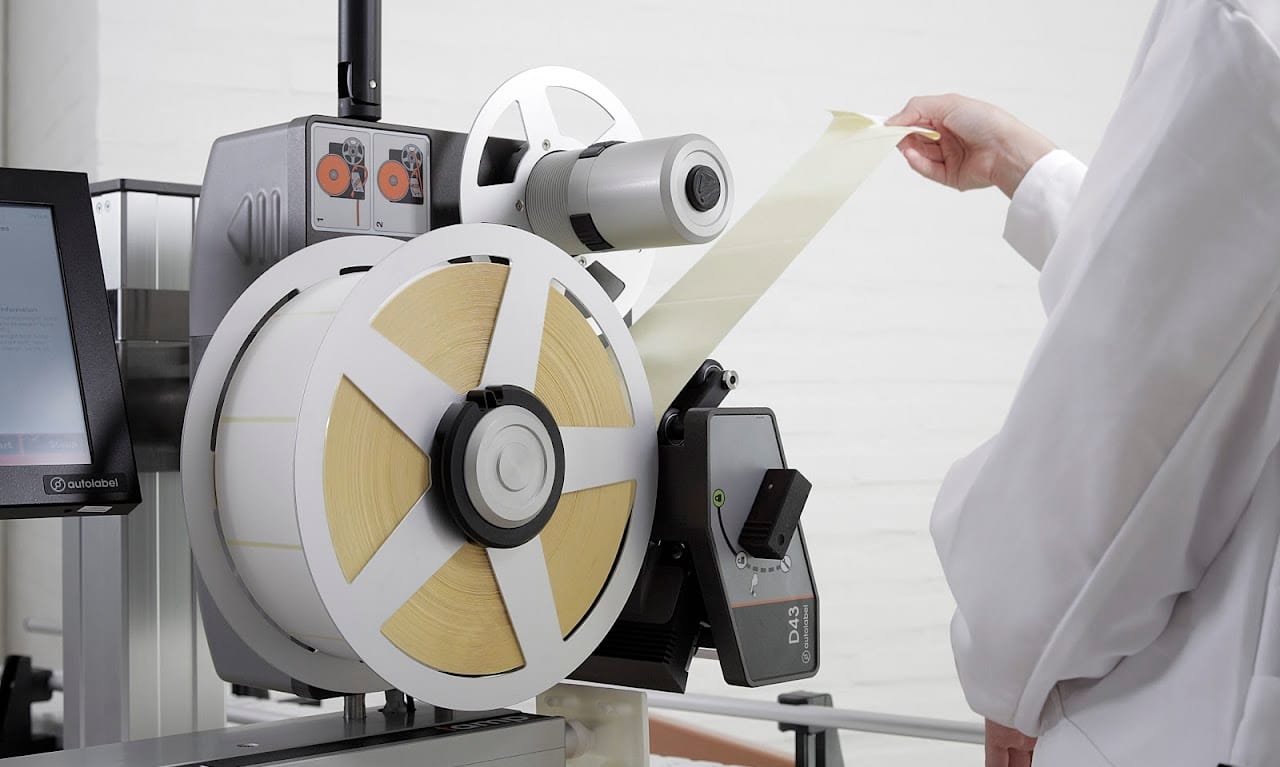

As with all Evolabel printers the applicator module is automatically folded away to allow easy access when changing a label roll. The clean and open design of the printer combined with a specially designed air nozzle which eliminates the need for an “assisted blow pipe tube” makes changes of the label rolls straight forward and simple. The Label sensor is also automatically adjusted each time the print mechanism is opened to give the correct label position every time The compact size of the D43 also makes it ideal for integration in various production lines or most packaging machine systems. Software integration is fast and straight forward with the Evolabel communication protocol.

Compact and Extremely Robust

The compact size of the D43 also makes it ideal for integration in various production lines or most packaging machine systems. Software integration is fast and straight forward with the Evolabel communication protocol.

Centralized paper path

100% of the label size is printable thanks to centralized label path and automatic rewind of each label. This also makes it quick and easy to change between various label widths.

Technical Specifications

  • Print technology: Thermal transfer (does also handle Direct thermal labels)

  • Maximum print width: 108 mm

  • Maximum print length: 350 mm

  • Label size (W x L): 30×20 mm to 118×400 mm (applicator specific)

  • Maximum media width: 120 mm

  • Printable area: 100% thanks to automatic rewind of each label

  • Applicators: BlowVAC, Belt, Tamp, eTamp, Wipe G2, Wipe90 G2, QuickTamp

  • Resolution: 300 dpi

  • Print speed: Printing speed Default 160 mm/s (max. 200 mm/s)

  • Historically compensated print function: Built into the control unit

  • Heat compensated print function: Built into the control unit

  • Fonts: Truetype, Unicode

  • Fonts: Truetype, Unicode

  • Barcodes: EAN-13, EAN-8, CODE128, GS1-128, GS1-Databar (+ Exp, Limit, Stack, Stack Omni, Exp Stack), Interleaved 2 of 5, UPCA​

  • 2D codes: Datamatrix, PDF-417, QR code

  • External dimensions, excl. applicator (LxWxH): 440x360x485 mm

  • Label roll outer diameter (max): 12″ / 300 mm

  • Label roll core diameter: 3″ / 76 mm

  • Label roll winding: Labels on the outside of the roll

  • Ribbon roll outer diameter (max): 3,4″ / 85 mm

  • Ribbon roll core diameter: 1″ / 25 mm

  • Ribbon ink side: Inside

  • Communication: Ethernet/LAN, USB, CANopen, RS-232

  • Operating temperature: +5°C to +40°C

  • Humidity: 20 to 85%, non-condensing

  • Mains supply: 110/240 VAC, 50/60 Hz

  • Air supply: 6-10 bar, clean and dry

Accessories

1. Touch screen – From the 7” to 15″ touch screen options, the operator can easily change products and settings.

​2. Status beacon – The status tower provides an easy way to monitor the machine status from a distance.

​3. Control Panel – From the Control panel the operator can easily stop, reset and start the printer.

​4. Trigger sensor – Evolabel offers a reflecting PNP trigger sensor from SICK, which fits most applications. The machine can interface to any 24V PNP trigger from other suppliers.

​5. Mounting kit – This is the standard robust stainless steel mounting kit from Evolabel. It will fit most applications. It is intended to be used with the pillar stand (6).

​6. Pillar stand – This pillar stand of anodized aluminium can either be mounted directly on the floor or onto the stand foot (7). The pillar stand is also available with motorized height adjustment.

​7. Stand foot – The stand foot is a robust powder coated aluminium foot with wheels and adjustable machine feet covered with rubber for good positional stability.
