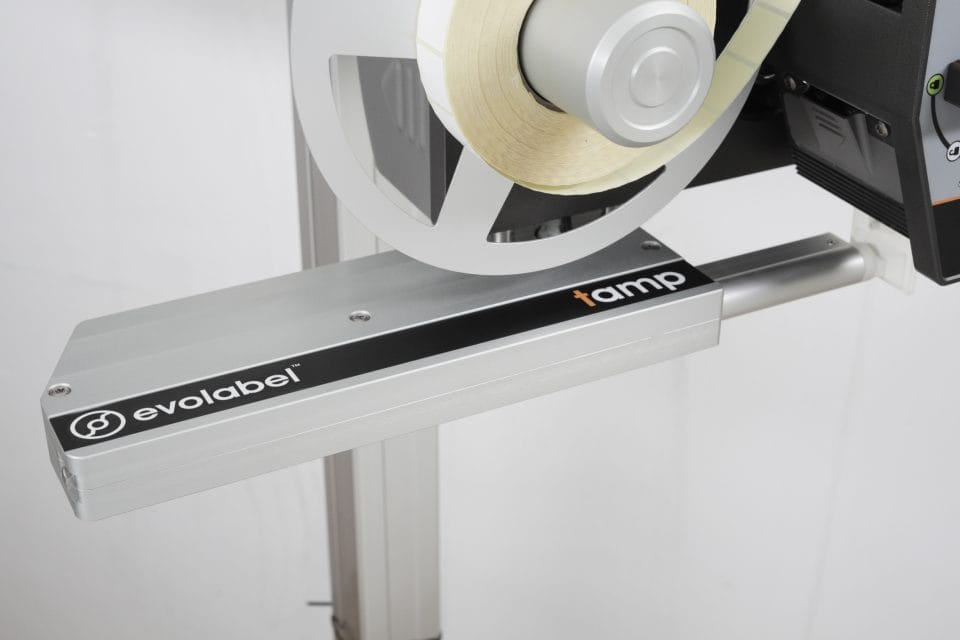

Tamp Applicator
The Tamp applicator is used where accurate label placement is required from the top or side of a product. Using a pneumatic tamp motion, labels are applied with controlled contact, making the system suitable for applications that demand precise positioning across a wide range of label sizes. Get in touch to discuss using a Tamp applicator within your print and apply labelling system.
Precise Tamp-Based Label Application
- Controlled pneumatic tamp action: Labels are applied using a measured tamp stroke, enabling accurate positioning from above or from the side.
- Wide label size capability: Supports label sizes from 30×20mm up to 118×240mm when used with 4-inch printers, and up to 178×240 mm with 6-inch printers.
- Integrated vacuum control: Multiple independent vacuum ejectors hold labels securely prior to application while helping reduce air usage.
- High speed operation: Lightweight construction supports application speeds of up to 120 labels per minute, depending on label size.
- Defined apply distance: Maximum effective apply distance of 70mm supports controlled contact during label placement.
Suitable Applications for Tamp Labelling
The Tamp applicator is typically selected for applications where labels must be placed accurately on products or packaging using direct contact.
Case labelling: Applying labels to cases where consistent positioning is required.
Carton labelling: Labelling cartons from the top or side as part of an automated packing line.
Modular Design for Print and Apply Integration
The Tamp applicator is designed to work as part of a complete print and apply labelling system with Evolabel printers. A shared mechanical, electrical and pneumatic interface supports straightforward integration, and coordinated printer and applicator movement provides clear access to the print head and label path during servicing or media changes.
The Tamp applicator is available in clockwise configurations, providing greater flexibility when integrating into production lines where space, orientation or access constraints would otherwise limit installation options.
Compatible printer models include D43, T43 and T63, along with their clockwise variants.
