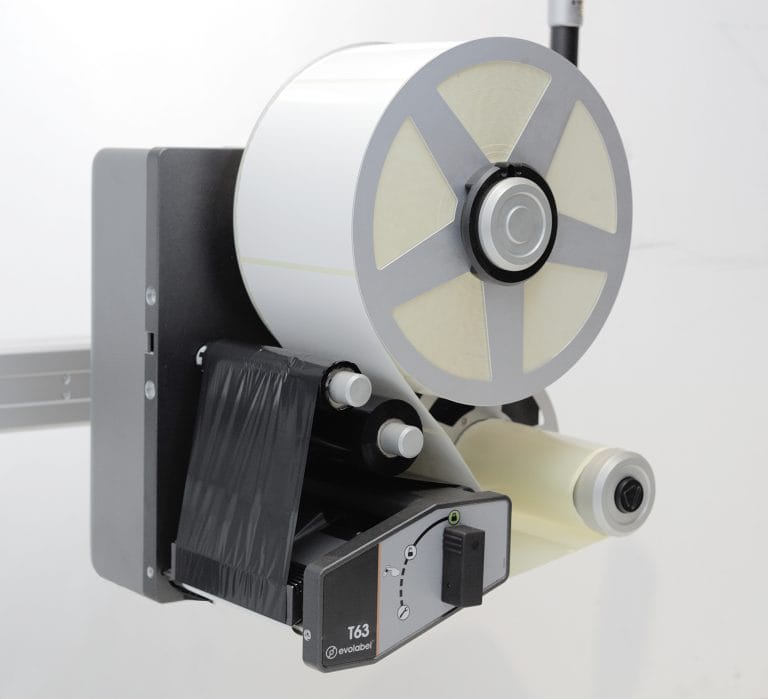

Thermal Transfer Printer (T63)

Print width up to 162 mm makes the Evolabel T63 thermal transfer printer suitable for pallet and box labelling, where large labels carrying a lot of data often are used. The rigid mechanical design of the Evolabel printer comes to its full right in the T63 model; the solid aluminium chassis is machined as one piece for perfect alignment of the wide label and transfer rollers, print head etc. This eliminates the need for any mechanical adjustments and secures high quality printing.

Pallet labelling

The T63 prints up to A5 format labels and meets the GS1 standards for pallet labeling. Evolabel also offers a solution for 1-side pallet labeling (side, front or rear) and for 2-side pallet labeling (front & side or side &rear). The Evolabel T63 can operate in Thermal Transfer (TT) or Direct Thermal mode (DT).

Technical Specifications

  • Print technology: Thermal transfer (does also handle Direct thermal labels)

  • Maximum print width: 162 mm (6.37 inches)

  • Maximum print length: 350 mm

  • Label size (W x L): 30×20 mm to 178×400 mm (applicator specific)

  • Maximum media width: 180 mm

  • Printable area: 100% thanks to automatic rewind of each label

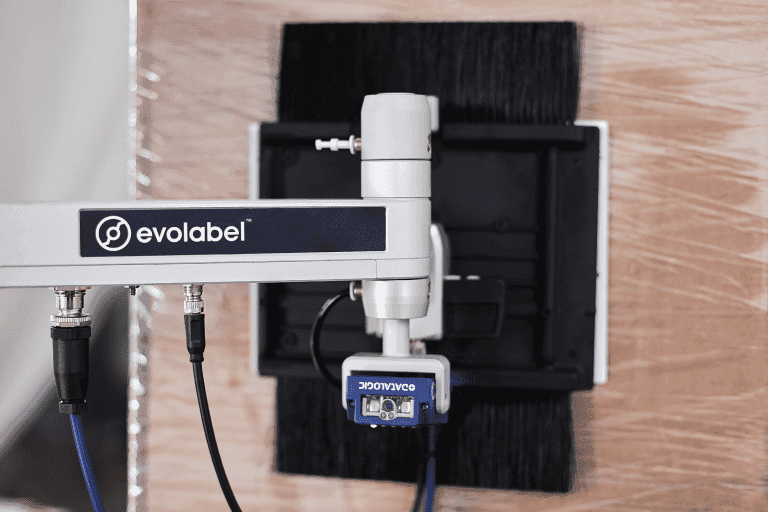

  • Applicators: BlowVAC, Belt, Tamp, eTamp, Wipe G2,      Wipe90 G2, QuickTamp, FlexWipe Pallet Labeling System

  • Resolution: 300 dpi

  • Print speed: Printing speed Default 160 mm/s (max. 200 mm/s)

  • Historically compensated print function: Built into the control unit

  • Heat compensated print function: Built into the control unit

  • Fonts: Truetype, Unicode

  • Barcodes: EAN-13, EAN-8, CODE128, GS1-128, GS1-Databar   (+ Exp, Limit, Stack, Stack Omni, Exp Stack), Interleaved 2 of 5, UPCA

  • 2D codes: Datamatrix, PDF-417, QR code

  • External dimensions, excl. applicator (LxWxH): 440x420x485 mm

  • Label roll outer diameter (max): 12″ / 300 mm

  • Label roll core diameter: 3″ / 76 mm

  • Label roll winding: Labels on the outside of the roll

  • Ribbon roll outer diameter (max): 3,4″ / 85 mm

  • Ribbon roll core diameter: 1″ / 25 mm

  • Ribbon ink side: Inside

  • Communication: Ethernet/LAN, USB, CANopen, RS-232

  • Operating temperature: +5°C to +40°C (down to -28°C provided that the power is always switched on)

  • Humidity: 20 to 85%, non-condensing

  • Mains supply: 110/240 VAC, 50/60 Hz

  • Air supply: 6-10 bar, clean and dry

Accessories

1. Touch screen – From the 7” to 15″ touch screen options, the operator can easily change products and settings.

​2. Status beacon – The status tower provides an easy way to monitor the machine status from a distance.

​3. Control Panel – From the Control panel the operator can easily stop, reset and start the printer.

​4. Trigger sensor – Evolabel offers a reflecting PNP trigger sensor from SICK, which fits most applications. The machine can interface to any 24V PNP trigger from other suppliers.

​5. Mounting kit – This is the standard robust stainless steel mounting kit from Evolabel. It will fit most applications. It is intended to be used with the pillar stand (6).

​6. Pillar stand – This pillar stand of anodized aluminium can either be mounted directly on the floor or onto the stand foot (7). The pillar stand is also available with motorized height adjustment.

​7. Stand foot – The stand foot is a robust powder coated aluminium foot with wheels and adjustable machine feet covered with rubber for good positional stability.
