Thermal Transfer Printer (T43)
The Evolabel T43 is an industrial thermal transfer printer designed for automated print and apply labelling where label durability and long term readability are required. It is commonly specified in manufacturing and packaging environments where labels must remain legible after extended storage or repeated handling. Speak to our team about incorporating Thermal transfer (T43) printers into your print and apply labelling system.
Durable Thermal Transfer Label Printing
- Thermal transfer printing: Uses ribbon based printing for applications where labels must withstand handling or long storage periods.
- Consistent output over time: The printer’s rigid aluminium build helps preserve alignment of key print components, supporting reliable output during extended use.
- Centralised paper path: The label path supports full use of the printable label area and allows changeover between different label widths.

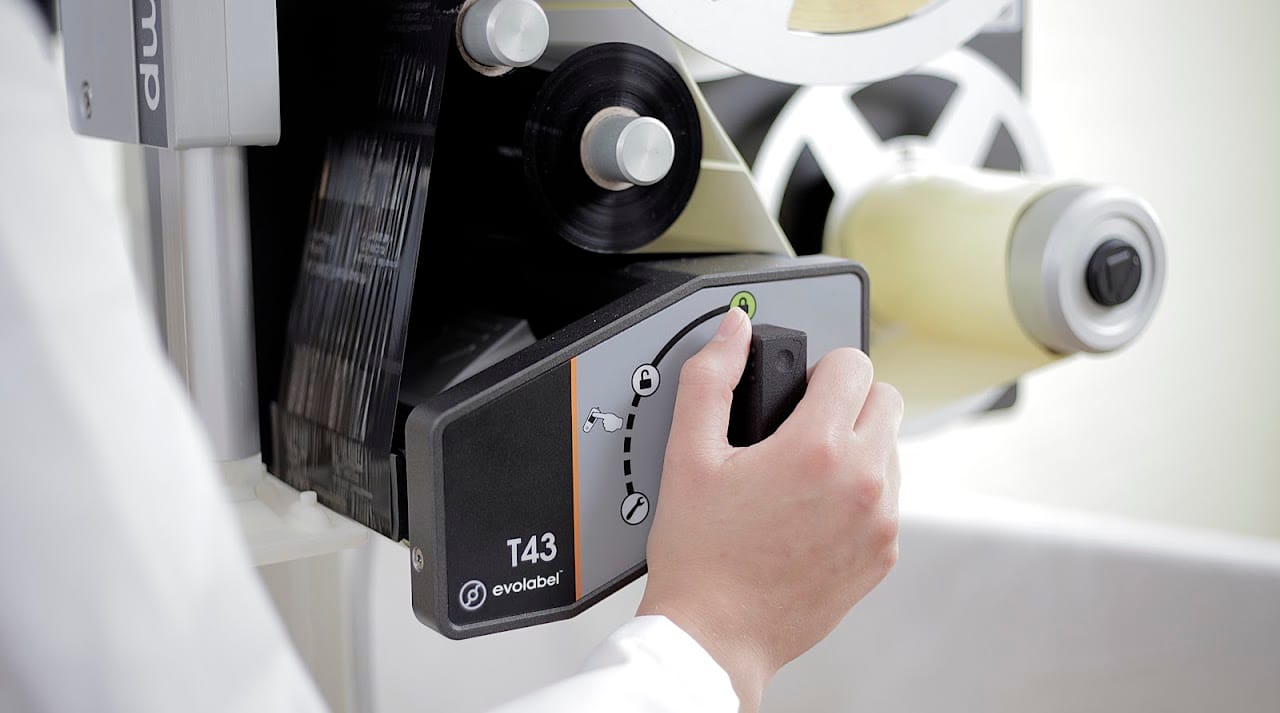

- Tool free maintenance access: The print head opens widely for cleaning and can be removed without tools, simplifying routine servicing.
- Automatic label positioning: The label sensor adjusts automatically when the print mechanism is opened, maintaining accurate label placement.
- Flexible orientation: Available in standard and clockwise configurations to suit different line layouts and access constraints.
- System integration support: Communication via standard interfaces supports straightforward integration with production and line control systems.
Suitable Applications for Thermal Transfer (T43) Printing
The T43 is typically selected for automated labelling applications where printed information must remain readable over time and through handling.
Manufacturing environments: Printing durable labels for components, cases or finished goods.
Pharmaceutical production: Supporting clear identification and barcode readability throughout storage and distribution.
Non-food industries: Applying labels to products exposed to abrasion or extended supply chains.
Built for Durable Automated Labelling

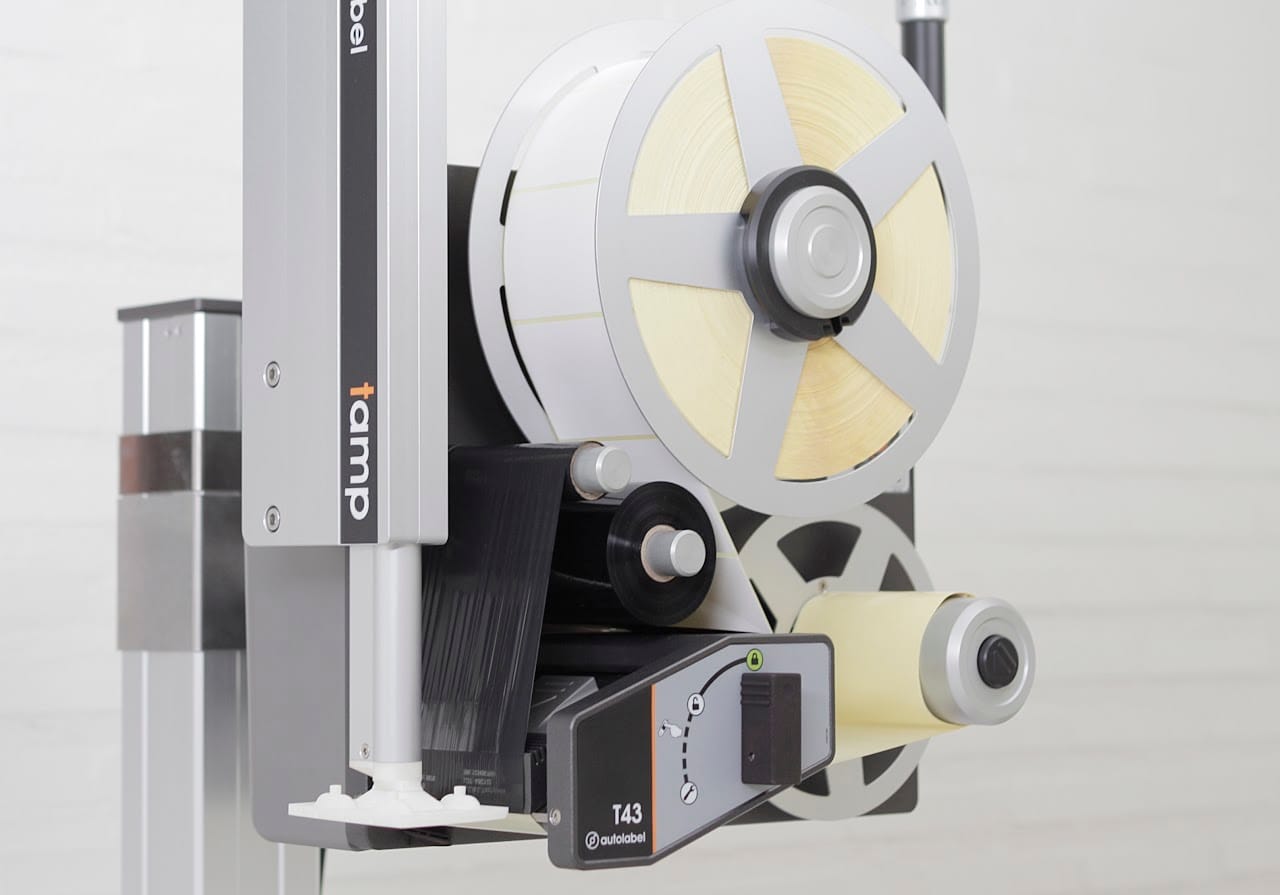

The T43 Thermal Transfer Printer is commonly specified within automated labelling setups where printing and label application are integrated on the line. Its mechanical design and communication interfaces allow it to be paired with a range of applicators, supporting automated labelling across different production environments and installation layouts.
Technical Specifications
Print technology: Thermal transfer (also supports direct thermal labels)
Maximum print width: 108mm
Maximum print length: 350mm
Label size (W×L): 30×20mm to 118×400mm (applicator dependent)
Maximum media width: 120mm
Printable area: 100% of label area through automatic rewind
Resolution: 300dpi
Print speed: Default 160mm/s (maximum 200mm/s)
Fonts: Truetype, Unicode
Supported barcodes: EAN-13, EAN-8, CODE128, GS1-128, GS1-Databar variants, Interleaved 2 of 5, UPC-A
2D codes: DataMatrix, PDF-417, QR code
Communication interfaces: Ethernet/LAN, USB, CANopen, RS-232
Operating temperature: +5°C to +40°C
Humidity: 20–85% non-condensing
Power supply: 110/240 VAC, 50/60 Hz
Air supply: 6–10 bar, clean and dry
Label roll outer diameter: Up to 300mm
Label roll core diameter: 76mm
External dimensions (L×W×H): 440×360×485mm (excluding applicator)
